Combination Clutch-Brakes

Mach III combination clutch-brakes provide both clutch and brake functions in one simple to install unit. When the clutch portion of the unit is engaged, power is transmitted from a source such as a continuously rotating motor to a machine component such as a shaft. When the brake is engaged, the component is held stationary.

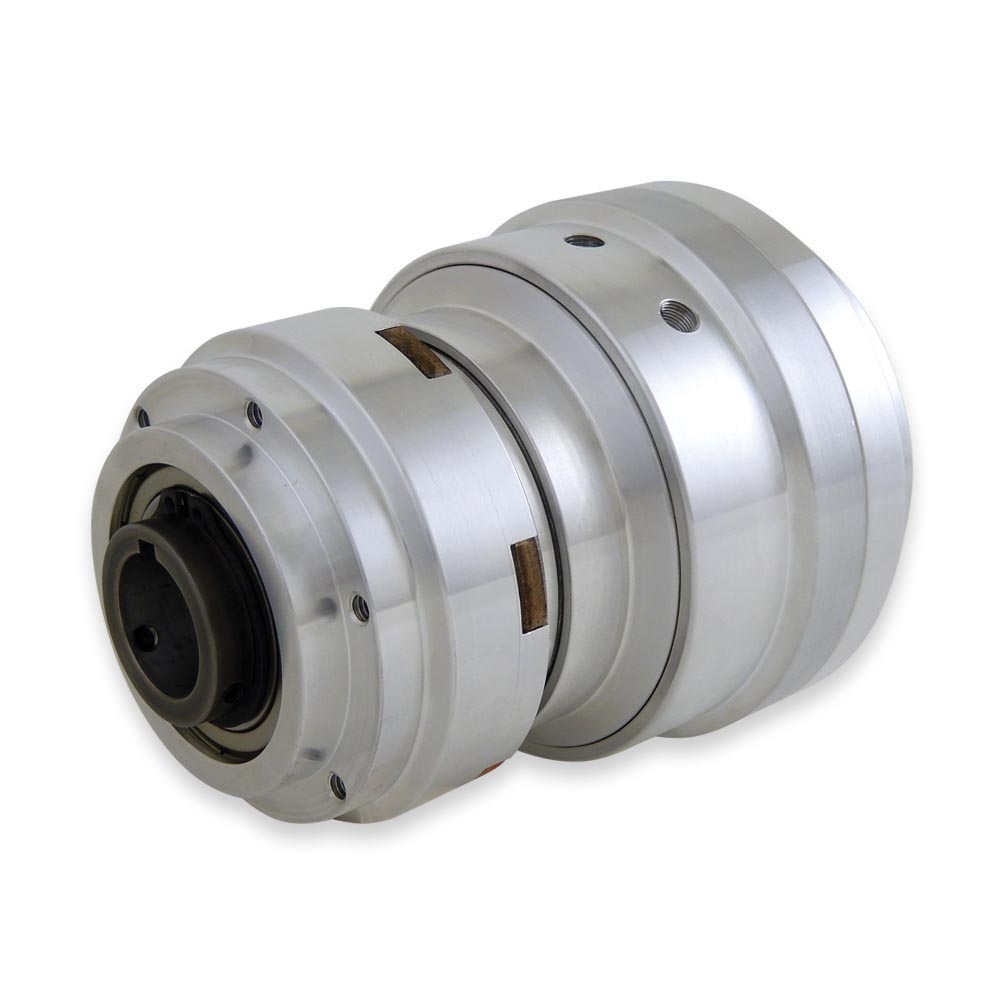

Air-Air Clutch-Brakes To Stop and Start the Shaft

Function: Starting and Stopping / Holding The Shaft
Drive Arrangement: Pilot Mounted Component to Shaft

Two separate air signals are required.
Both clutch and brake torque transmitted are proportional to the amount of air pressure applied.

View Model & Specs

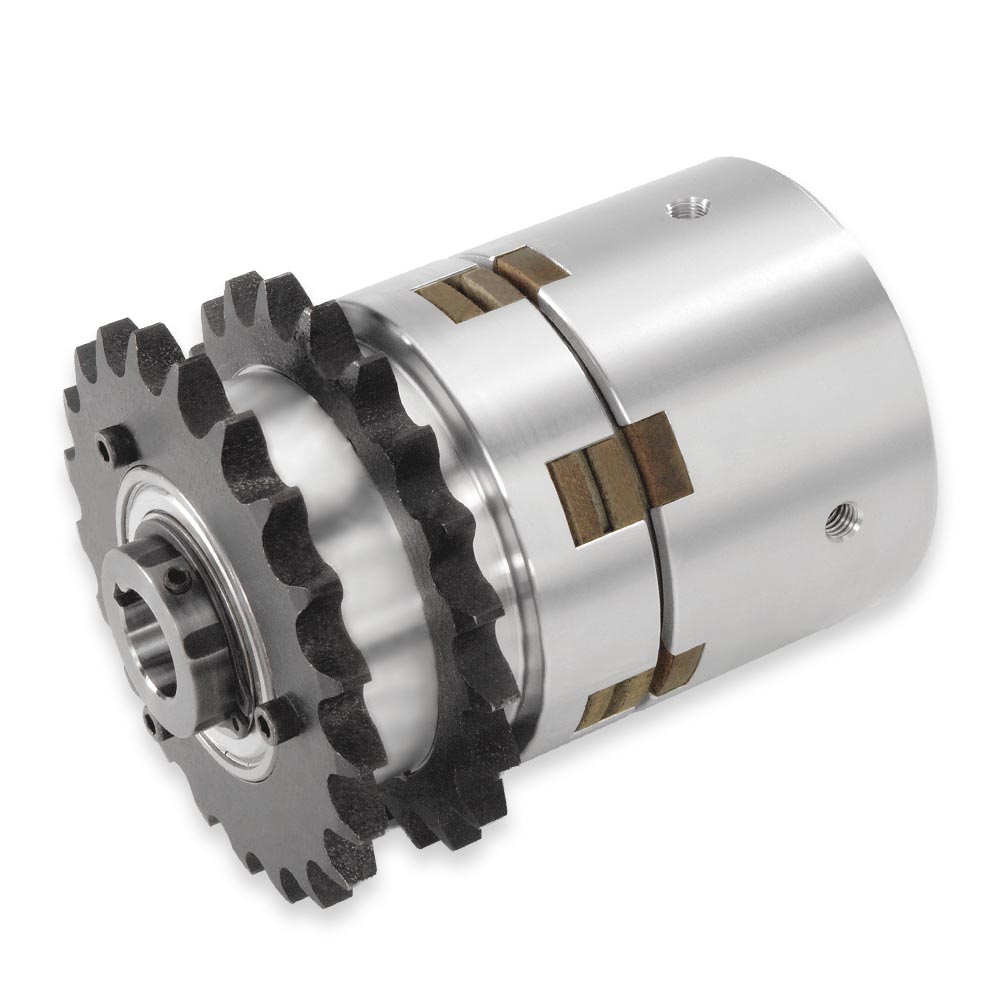

Double Single Sprocket Clutch-Brakes To Stop and Start the Shaft

Function: Starting and Stopping / Holding The Shaft
Drive Arrangement: Pilot Mounted Component to Shaft

One air signal is required.
Clutch torque transmitted is proportional to the amount of air pressure applied, brake torque is a fixed value.

View Model & Specs

Pilot Input Clutch-Brakes To Stop and Start the Shaft

Function: Starting and Stopping / Holding The Shaft
Drive Arrangement: Pilot Mounted Component to Shaft

One air signal is required.
Clutch torque transmitted is proportional to the amount of air pressure applied, brake torque is a fixed value.

View Model & Specs

NEMA Frame Clutch-Brakes

Function: Starting and Stopping / Holding The Output Shaft
Drive Arrangement: Motor to Gear Reducer (or Output Shaft Mounted Component)

One air signal is required.
Clutch torque transmitted is proportional to the amount of air pressure applied, brake torque is a fixed value.

View Model & Specs

Shaft Input Clutch-Brakes To Stop and Start the Pilot

Function: Starting and Stopping / Holding The Pilot Mounted Component
Drive Arrangement: Shaft to Pilot Mounted Component

One air signal is required.
Clutch torque transmitted is proportional to the amount of air pressure applied, brake torque is a fixed value.

View Model & Specs

Mach III Combination Clutch-Brake Features

Soft start clutch engagement.
Each clutch-brake is built to order with the precise Imperial or Metric bore and keyway requested.
Required pulleys, sprockets and v-belt sheaves can be installed at the factory to simplify field installation.
Combination clutch-brakes are easy and economical to use with long, low maintenance service life when properly applied and operated.
