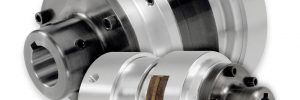

Posted by Lesli Riehmann
Function: Connect, Disconnect
Drive Arrangement: Shaft to Shaft, No Angular Misalignment and/or Parallel Offset
- Bore Sizes to 3.500 inch, Torque Requirements to 21,204 lb.in.
- Clutch mechanism is through bored and keyed to connect to a fully supported shaft.
- Coupling is bored and keyed to connect to a fully supported shaft.

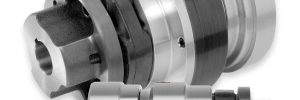

Posted by Lesli Riehmann
Function: Connect, Disconnect
Drive Arrangement: Shaft to Shaft, Slight Angular Misalignment and/or Parallel Offset
- Bore Sizes to 2.000 inch, Torque Requirements to 5,397 lb.in.
- Clutch mechanism is through bored and keyed to connect to a fully supported shaft.
- Coupling is bored and keyed to connect to a fully supported shaft.

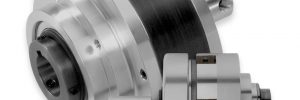

Posted by Lesli Riehmann
Function: Connect, Disconnect
Drive Arrangement: Shaft to Pilot Mounted Component or Pilot Mounted Component to Shaft
- Bore Sizes to 3.500 inch, Torque Requirements to 41,008 lb.in.
- Clutch is blind bored and keyed for connection in an end of shaft location.
- A sprocket, pulley or v-belt sheave can be mounted on the clutch pilot.

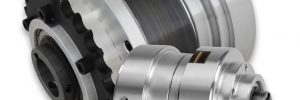

Posted by Lesli Riehmann
Function: Connect, Disconnect (Cycling Applications)
Drive Arrangement: Pilot Mounted Component to Shaft or Shaft to Pilot Mounted Component
- Bore Sizes to 3.500 inch, Torque Requirements to 21,204 lb.in.
- Clutch is through bored and keyed for connection to a shaft in any axial location.
- A sprocket, pulley or v-belt sheave can be mounted on the clutch pilot.

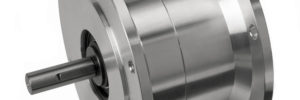

Posted by Lesli Riehmann
Function: Connect, Disconnect
Drive Arrangement: Motor to Gear Reducer (Gear Box)
- Clutch input is bored and keyed to connect to a NEMA frame motor.
- Clutch output shaft with key connects to a NEMA frame gear reducer.

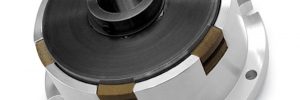

Posted by Lesli Riehmann
Function: Stopping, Holding (Cycling Applications)
Drive Arrangement: Machine Frame or Bracket to Shaft
- Applying air pressure compresses drive and friction discs to produce torque.
- Torque is proportional to the air pressure applied.
- Separator springs assure full brake release when air pressure is absent.

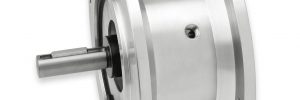

Posted by Lesli Riehmann
Function: Holding, Failsafe (Non-Cycling Applications)
Drive Arrangement: Motor to Gear Reducer (Gear Box)
- Spring pressure compresses drive and friction discs to produce a fixed amount of torque.
- Air pressure is applied to disengage the brake.

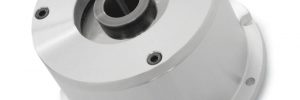

Posted by Lesli Riehmann
Function: Holding, Failsafe (Non-Cycling Applications)
Drive Arrangement: Machine Frame or Bracket to Shaft
- Spring pressure compresses drive and friction discs to produce a fixed amount of torque.
- Air pressure is applied to disengage the brake.
