Air Engaged Clutches – Through Shaft

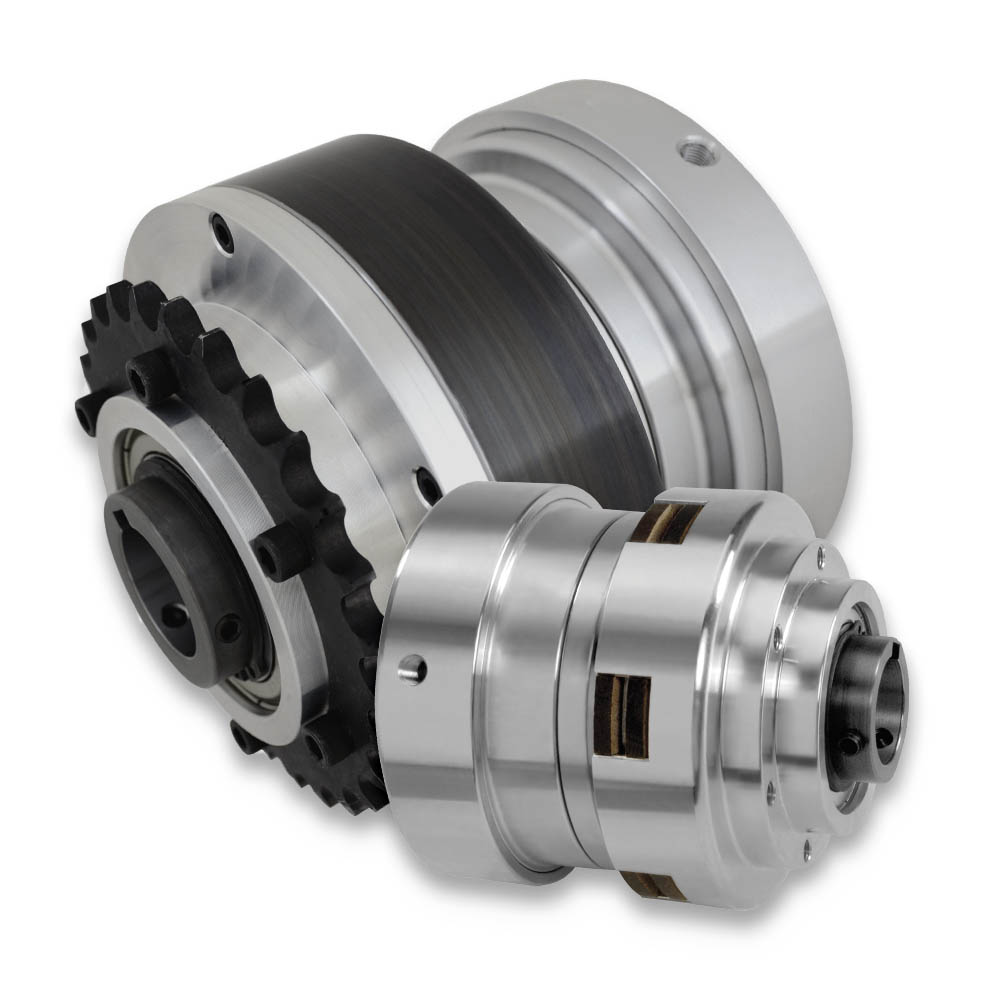

Through Shaft Bored, Pilot Mount Friction Clutches
Function: Connect, Disconnect (Cycling Applications)
Drive Arrangement: Pilot Mounted Component to Shaft or Shaft to Pilot Mounted Component
Operation
- Air pressure compresses drive and friction discs to produce torque.
- Release springs provide positive disengagement when air is exhausted.
- Torque is linear in response to air pressure applied.
Mounting
- Through/Mid Shaft or End Shaft.
- Friction clutch slides on shaft and is fixed with set screws and a customer supplied key.
- Anti-rotation arm required to prevent rotation of the air housing.
- Friction clutches are designed for horizontal mounting. If vertical mounting is required, consult engineering for options.
Applications
- Friction clutches are suitable for Connect/Disconnect and Cycling applications.
- Maximum RPM varies by model. Please consult the detail sheets (below). Consult engineering if the intended application exceeds the listed maximum RPM.
Design Features
- Industrial friction clutches are bored to suit up to the maximum shown (US & Metric) for easy installation.
- Low coefficient friction lining versions are available for applications requiring slip or a narrower torque range. Contact engineering for details.
- Machined pilot for easy mounting of pulley or sprocket.
Customization Options
All Mach III products can be customized to meet the needs of your application.
" />| Product Code | Torque @ 80 PSI | Maximum Bore with Standard Keyway | Detail Sheet | Request 3D CAD Model |
|---|---|---|---|---|
| C2A2R-STH | 190 lb-in | 0.500 in (12 mm) | View PDF | Request |
| C3A2R-STH | 555 lb-in | 1.000 in (24 mm) | View PDF | Request |
| C4A2R-STH | 1,317 lb-in | 1.250 in (31 mm) | View PDF | Request |
| C5A2R-STH | 2,587 lb-in | 1.438 in (38 mm) | View PDF | Request |
| C5A2K-STH | 3,320 lb-in | 1.563 in (40 mm) | View PDF | Request |
| C6A2G-STH | 5,397 lb-in | 2.000 in (52 mm) | View PDF | Request |
| C6A2K-STH | 5,397 lb-in | 2.000 in (52 mm) | View PDF | Request |
| C8A2K-STH | 9,212 lb-in | 2.500 in (66 mm) | View PDF | Request |
| CAA2K-STH | 14,755 lb-in | 2.750 in (72 mm) | View PDF | Request |
| CBA2K-STH | 21,204 lb-in | 3.500 in (95 mm) | View PDF | Request |
