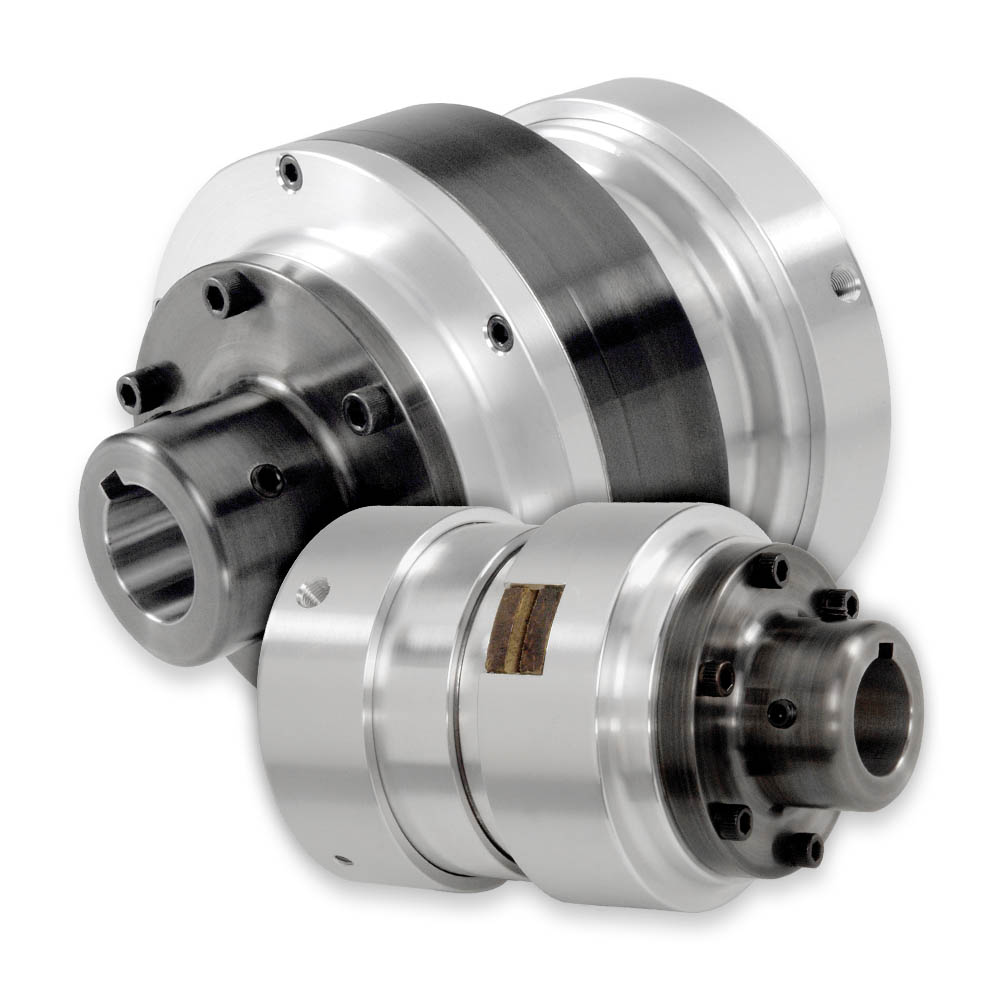

Air Engaged Clutch Mechanisms With Couplings
Connect Two Supported Shafts with No Angular Misalignment and/or Parallel Offset
Function: Connect, Disconnect
Drive Arrangement: Shaft to Shaft, No Angular Misalignment and/or Parallel Offset
Operation
- Friction clutch coupling engages with air pressure, spring released when air is exhausted
- Torque is linear in response to air pressure applied.
Mounting
- Set screws and customer supplied key connect the clutch mechanism to one shaft and the coupling hub to a second, fully supported shaft.
- Shafts must be accurately aligned to prevent premature failure.
- Anti-rotation arm required to prevent rotation of the air housing.
- Clutch couplings are designed for horizontal mounting. If vertical mounting is required, consult engineering for options.
- Note: Clutch coupling mechanism DOES NOT support coupling half.
Applications
- Clutch couplings connect/disconnect two fully supported shafts.
- Maximum RPM varies by model. Please consult the detail sheets (below). Consult engineering if the intended application exceeds the listed maximum RPM.
Design Features
- Both clutch mechanism and coupling half bored to suit up to the maximum shown (US & Metric) to accept differing shaft sizes.
- Low coefficient friction lining versions are available for applications requiring slip or a narrower torque range. Contact engineering for details.
Customization Options
All Mach III products can be customized to meet the needs of your application.
" />| Product Code | Torque @ 80 PSI | Maximum Bore with Standard Keyway | Detail Sheet | Request 3D CAD Model |
|---|---|---|---|---|
| M2G2R-STH | 190 lb-in | 0.500 in (12 mm) | View PDF | Request |
| M3G2R-STH | 555 lb-in | 1.000 in (24 mm) | View PDF | Request |
| M4G2R-STH | 1,317 lb-in | 1.250 in (31 mm) | View PDF | Request |
| M5G2R-STH | 2,587 lb-in | 1.438 in (38 mm) | View PDF | Request |
| M5G2K-STH | 3,320 lb-in | 1.563 in (40 mm) | View PDF | Request |
| M6G2G-STH | 5,397 lb-in | 2.000 in (52 mm) | View PDF | Request |
| M6G2K-STH | 5,397 lb-in | 2.000 in (52 mm) | View PDF | Request |
| M8G2K-STH | 9,212 lb-in | 2.500 in (66 mm) | View PDF | Request |
| MAG2K-STH | 14,755 lb-in | 2.750 in (72 mm) | View PDF | Request |
| MBG2K-STH | 21,204 lb-in | 3.500 in (95 mm) | View PDF | Request |
