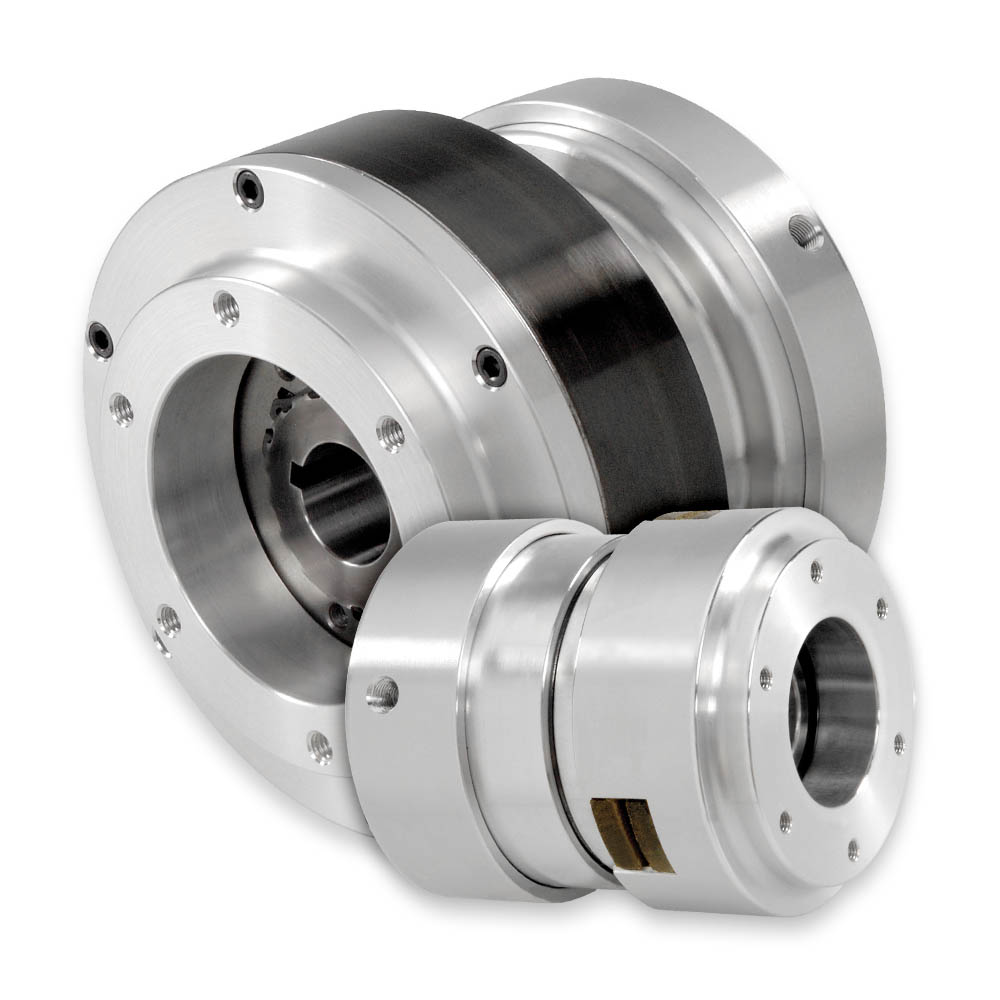

Air Engaged Clutch Mechanisms With Adapters
Connect a Supported Shaft and Bearing Mounted Component
Function: Connect, Disconnect
Drive Arrangement: Shaft to Adapter Mounted Component
Operation
- Friction clutch engages with air pressure, spring released when air is exhausted.
- Torque is linear in response to air pressure applied.
Mounting
- Through/Mid Shaft or End of Shaft.
- Clutch slides on shaft and is fixed with set screws and a customer supplied key.
- Anti-rotation arm required to prevent rotation of the air housing.
- Designed for horizontal mounting. If vertical mounting is required, consult engineering for options
- Note: Clutch mechanism DOES NOT support Adapter.
Applications
- Clutch mechanisms are suitable for cycling applications connecting and disconnecting two fully supported shafts.
- Maximum RPM varies by model. Please consult the detail sheets (below). Consult engineering if the intended application exceeds the listed maximum RPM.
Design Features
- Bored to suit up to the maximum shown (US & Metric) for easy installation
- Machine face and bolt circle on adapter facilitate connection to bearing mounted pulley or gear
- Low coefficient friction lining versions are available for applications requiring slip or a narrower torque range. Contact engineering for details.
Customization Options
All Mach III products can be customized to meet the needs of your application.
" />| Product Code | Torque @ 80 PSI | Maximum Bore with Standard Keyway | Detail Sheet | Request 3D CAD Model |
|---|---|---|---|---|
| M2R2R-STH | 190 lb-in | 0.500 in (12 mm) | View PDF | Request |
| M3R2R-STH | 555 lb-in | 1.000 in (24 mm) | View PDF | Request |
| M4R2R-STH | 1,317 lb-in | 1.250 in (31 mm) | View PDF | Request |
| M5R2R-STH | 2,587 lb-in | 1.438 in (38 mm) | View PDF | Request |
| M5R2K-STH | 3,320 lb-in | 1.563 in (40 mm) | View PDF | Request |
| M6R2G-STH | 5,397 lb-in | 2.000 in (52 mm) | View PDF | Request |
| M6R2K-STH | 5,397 lb-in | 2.000 in (52 mm) | View PDF | Request |
| M8R2K-STH | 9,212 lb-in | 2.500 in (66 mm) | View PDF | Request |
| MAR2K-STH | 14,755 lb-in | 2.750 in (72 mm) | View PDF | Request |
| MBR2K-STH | 21,204 lb-in | 3.500 in (95 mm) | View PDF | Request |
